Mobile Phone Signal Booster Systems

Metro Solutions are experts in designing and implementing full Mobile Phone Signal Booster Systems in large office block buildings, small to medium commercial buildings, large residential multi dwelling units and also large new house builds where the insulation is causing issues with your phone signals. Our GSM, 3G & 4G Phone Signal Booster Systems are also ideal for Ships, Boats, Yachts, Barges and Ferries.

Metro Solutions work only with Europes first and only fully legal Mobile Phone Signal Booster Systems



The simple but effective Phone Signal Booster System locates the strongest local GSM, 3G & 4G mast and and draws the signal throughout the house over specialised cabling to repeaters discreetly located within the building and spreads the signal throughout the structure efficiently. This means that it’s as if you are using your mobile phone at the highest point of the building.

With such strong insulation in new buildings, particularly in new one off house builds, Mobile Phone Signal Booster Systems are an essential part of the build and best if planned for in the early stages, so that allowance can be made for the specific cable structure to be in place before the walls are closed up.



How It Works

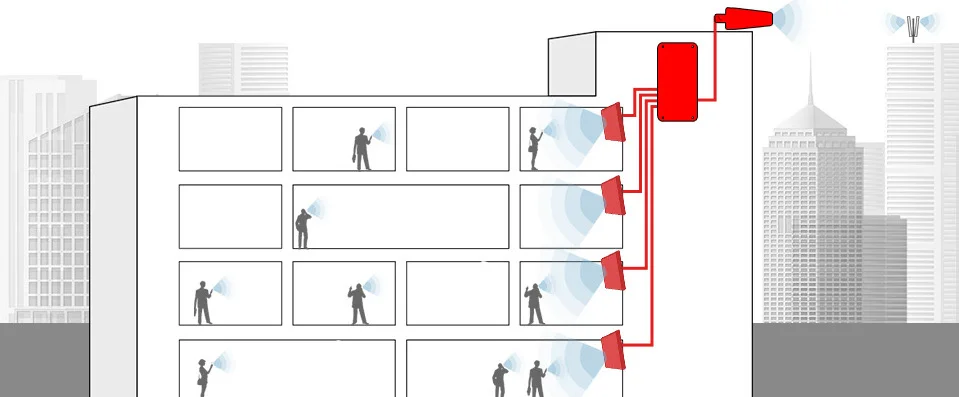

The antenna installed on the roof receives mobile signal from all networks. It sends this signal down co-axial cable to the Mobile Phone Booster System repeater.

  • The repeater boosts the signal to each of its 4 ports.

  • 4 antennas can be installed within the building and connected to these ports.

  • All devices (mobile phones , tablets , laptops, IOT’s) can now communicate with this enhanced signal.

Features

  • Boosts mobile signal in large buildings

  • Coverage: ~10 rooms

  • Boosts all mobile operators

  • Boosts voice and data (GSM, 3G and 4G)

  • Unlimited users

  • Simple and intuitive LED signal indicator

  • No broadband connection required

  • Repeater output power: 5 Watts (50 times less then mobile phone)

  • Complete Network operator protection

Frequency

The Mobile Phone Booster System repeater comes with different frequency options.

You can choose a repeater kit that boosts GSM only, or a more expensive kit that boosts GSM, 3G and 4G.

Your choice depends on your needs. If you only need to boost voice, we recommend the Stella OfficeG Mobile Phone Signal Booster. However, if you want to boost data also, we suggest the 3 band or 5 band options.

Metro Solutions work with Europes first and only fully legal Mobile Phone Signal Booster Systems

Two reasons why it’s important to have and why Metro Solutions only use only legally compliant repeaters.

1) Superior repeater performance.

In order to be legally compliant, a repeater must pass a series of sophisticated radio frequency tests (E.T.S.I standard).

In order to pass these tests, the repeater must be designed with high grade, high power components. For customers using Stelladoradus repeaters, this will result in an excellent mobile phone coverage experience.

2) Interference

The European regulations are there to ensure the repeaters do not cause interference on the mobile phone networks. Interference causes other mobile phone users to experience increased level of dropped calls, and sometimes a complete inability to use the mobile phone network.

Every year European regulators confiscate many thousands of illegal repeaters.




Coverage

The Mobile Phone Signal Booster repeater kit contains 4 antennas. Each antenna provides 30 X 30 M2 of coverage in open space. Because it has 4 ports , you will have 4 separate areas with this coverage.

However, this is only in open spaces. In practice, it equates to about 10 sized rooms in a typical building layout. The coverage depends on the type of walls inside your building.

Concrete or metal insulated walls will reduce the coverage, whereas plaster board walls and  wide open internal spaces allow an increase in coverage

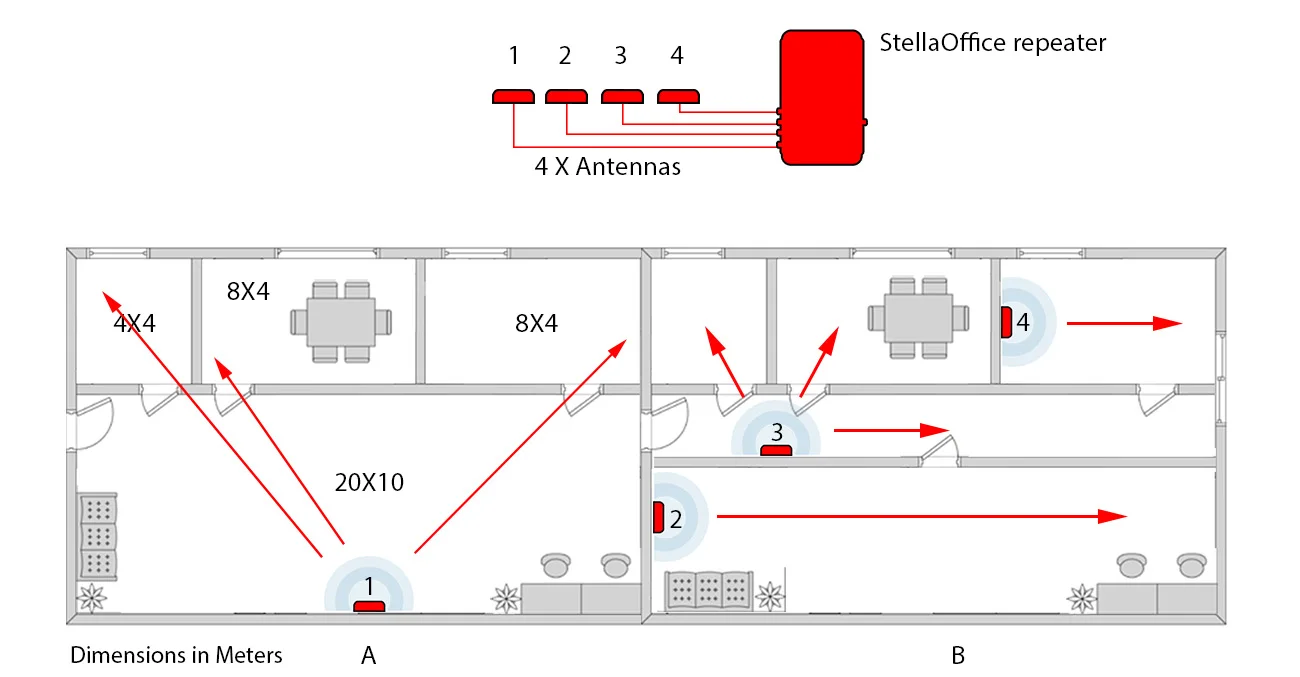

See the example coverage diagram above.

A:  This section of the building  we can get away with using one antenna as the signal will pass through the doors to the three offices.

B:  This section of the building  has a corridor separating the rooms. Here we will need at least three antennas to ensure coverage to all rooms and also the corridor.


Metro Solutions are available to discuss all possible options for your Mobile phone signal booster systems
